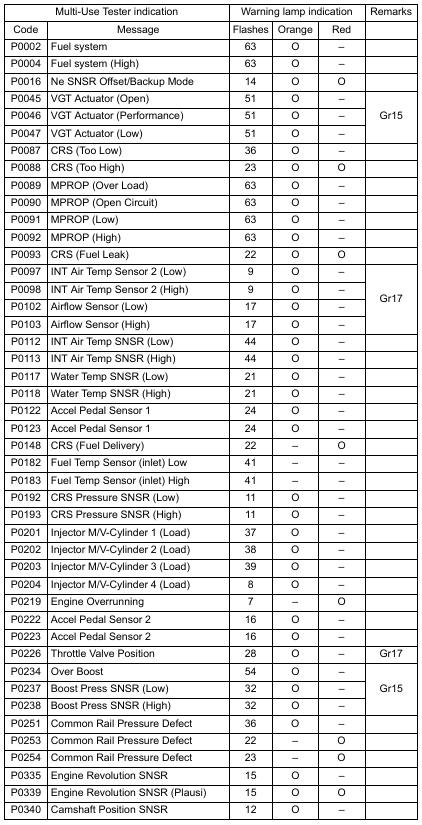

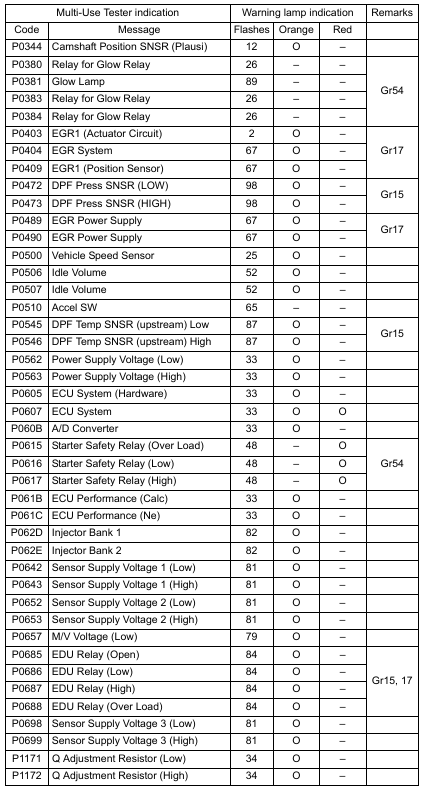

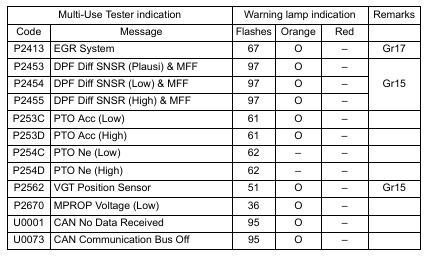

FUSO 4M4 – FUEL AND ENGINE CONTROL – TROUBLESHOOTING – Inspections Based on Diagnosis Codes – Diagnosis code list
