KUBOTA – L2501 – ELECTRICAL SYSTEM – CHECKING AND ADJUSTING – ENGINE STARTING AND STOPPING SYSTEM – Checking Fuse

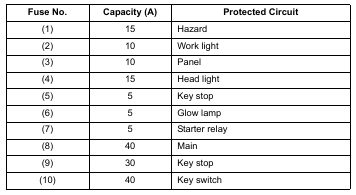

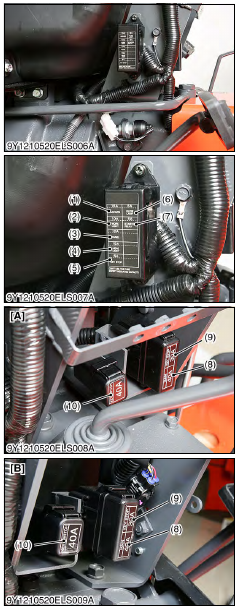

1. Check the fuse.
2. If any of the fuses is blown, replace it with one having same capacity.
IMPORTANT
• If a fuse is blown, check the cause and be sure to replace it with the one having same capacity.
