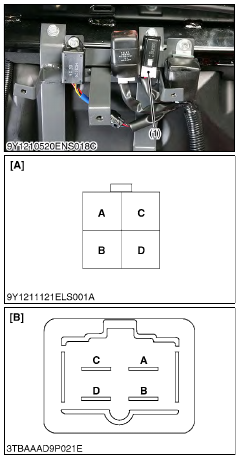

1) Connector Voltage
1. Turn the main switch off.
2. Remove the starter relay.
3. Measure the voltage across the terminal C and chassis.
4. Measure the voltage across the terminal A and chassis while turn the main switch to START position.
5. If the voltage is different from the battery voltage, battery, slow blow fuse, wiring harness and main switch is faulty.
2) Starter Relay
1. Measure the resistance across the terminal A and B.
2. If the resistance notably differs from the factory specifications, starter relay is faulty.
3. Apply battery voltage across the terminal A and B, and check for continuity across the terminal C and D.
4. If there is no continuity, starter relay is faulty.
