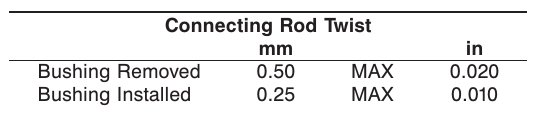

Cummins N14 – Connecting Rods – Bend and Twist Inspection – Twist

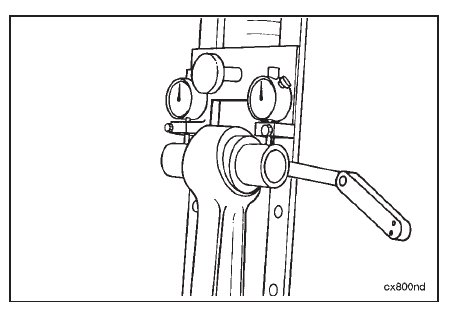

Using a feeler gauge, check the clearance between the mandrel and the dial indicator holding plate as shown.

Cummins N14 - Connecting Rods - Bend and Twist Inspection - Alignment
Install the mandrel and the arbor into the connecting rod to be inspected. Install the…
Cummins N14 - Connecting Rods - Bend and Twist Inspection - Fixture Calibration
Use a connecting rod checking fixture, Part No. ST-561, and a connecting rod mandrel set,…
Cummins N14 - Jacobs Brake
For details on how to adjust Jacobs Brakes, refer to the Jacobs Manufacturing Company, 22…
Cummins N14 - Pistons - Inspection
Visually inspect the piston bowl, the pin bore, and the skirt for cracks or damage.…
Cummins N14 - Cylinder Block - Cleaning and Inspection - Camshaft Bore - Inspection
Measure the cylinder block camshaft bore inside diameter. If the bore inside diameter is not…
