1. Using EST, open the D_ContinuousMonitor.ssn.

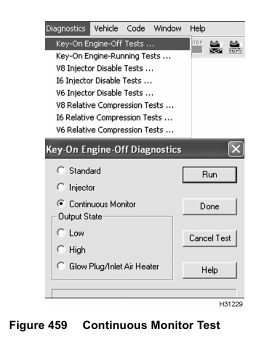

2. To monitor signal voltage, run KOEO Continuous Monitor Test. For help, see “Continuous Monitor Test” in Section 3 (page 68).
3. Monitor IAT signal voltage. Verify an active DTC for the IAT circuit.

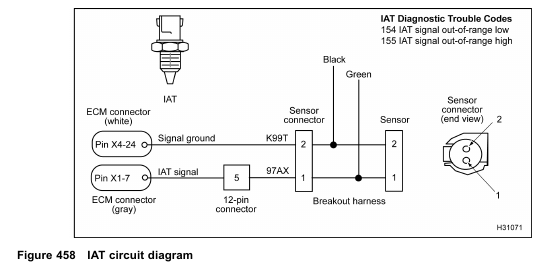

4. If code is active, do step 6 and 7 to check circuit for the IAT sensor using the following table.

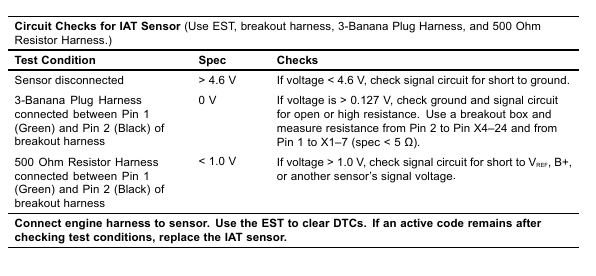

• Circuit Checks for IAT Sensor
5. If code is inactive, wiggle connectors and wires at all suspected problem locations. If circuit continuity is interrupted, the EST will display DTCs related to the condition.
6. Disconnect chassis harness from temperature sensor.
NOTE: Inspect connectors for damaged pins, corrosion, or loose pins. Repair if necessary.
7. Connect Temperature Sensor Breakout Harness to engine harness only.
