KUBOTA – L2501 – ELECTRICAL SYSTEM – CHECKING AND ADJUSTING – LIGHT SWITCHES AND FLASHER UNIT – Connector Voltage

1. Disconnect the flusher unit connector.

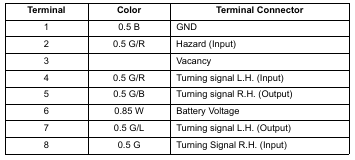

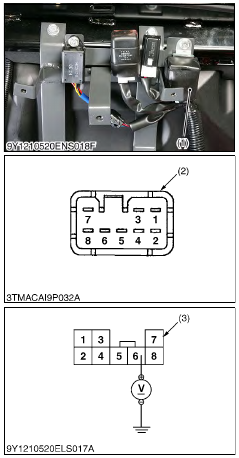

2. Measure the voltage with voltmeter across the connector of wiring harness side terminal 5 and chassis.
3. If the voltage differs from the battery voltage, the wiring harness or fuse is faulty.

(Reference)

KUBOTA - L2501 - ELECTRICAL SYSTEM - CHECKING AND ADJUSTING - LIGHT SWITCHES AND FLASHER UNIT - Connector Voltage
1. Connect the battery negative code, then measure the voltage across the a terminal and…
KUBOTA - L2501 - ELECTRICAL SYSTEM - CHECKING AND ADJUSTING - ENGINE STARTING AND STOPPING SYSTEM - Connector Voltage
1. Measure the voltage with a voltmeter across the connector B terminal and chassis. 2.…
KUBOTA - L2501 - ELECTRICAL SYSTEM - CHECKING AND ADJUSTING - LIGHT SWITCHES AND FLASHER UNIT - Connector Voltage
1. Disconnect the 8P connector (A) from the combination switch. 2. Measure the voltage with…
KUBOTA - L2501 - ELECTRICAL SYSTEM - CHECKING AND ADJUSTING - ENGINE STARTING AND STOPPING SYSTEM - Connector Voltage
1. Disconnect the 2P connector from engine stop solenoid. 2. Turn the main switch to…
KUBOTA - L2501 - ELECTRICAL SYSTEM - CHECKING AND ADJUSTING - ENGINE STARTING AND STOPPING SYSTEM - Checking Connector Voltage
1. Turn the main switch OFF. Measure the voltage between the terminal B (1) and…
